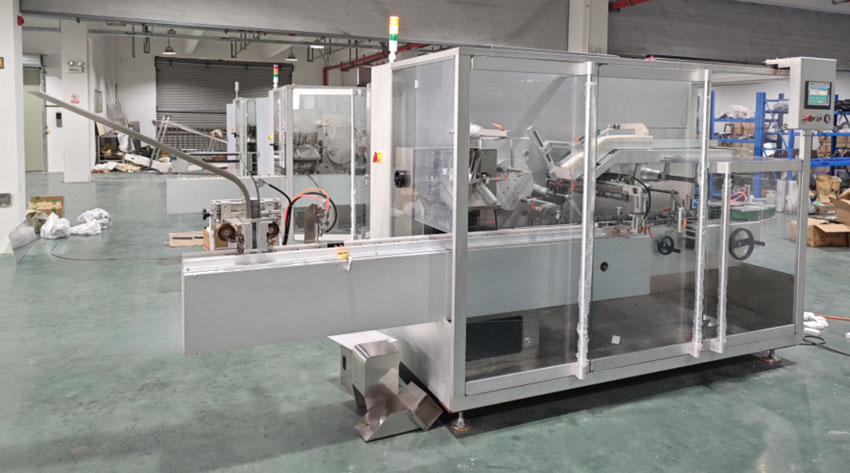

YL-130 Automatic pharmaceutical cartoning machine

Features

Weight in kg: 1500

Steady production speed: 60-70cartons/min

Grammage: Between 60-70g/m2

Standard power supply: 380V – 50Hz three phase

Power consumption in KW: 1.5KW

Air consumption: 20M3/h

Get a Quote

Product Description

YL-130 Automatic Cartoning Machine is suitable for automatic feeding round bottle / square bottle into carton which bottle use in pharmaceutical, cosmetic, food, health product. On line bottle unscramble and feeding, leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

Features

PLC Control: Equipped with a PLC control system and an intuitive troubleshooting display, the machine ensures easy operation and rapid fault diagnosis for streamlined maintenance.

High-speed and versatile cartoning capabilities: This high-speed cartoning machine has multiple cartoning operations and can complete various complex cartoning tasks simultaneously.

Stable carton picking: The machine adopts step-by-step indexing and double vacuum suction cup mechanism for carton picking, which minimizes errors in carton handling.

Customizable Add-Ons: Optional upgrades include a date/lot number printer and a manual insertion device, allowing flexible configuration to meet diverse production requirements.

Intelligent Safety & Quality Control: Automatic Overload Protection: Shuts down instantly to prevent damage during overload conditions.

Defect Rejection System: Automatically eliminates cartons missing packaging materials or instruction sheets, ensuring 100% quality compliance.

Adjustable micro-motion function: The micro-motion device enables the equipment to move smoothly and freely, making it easy to adapt to the production of various cartons.

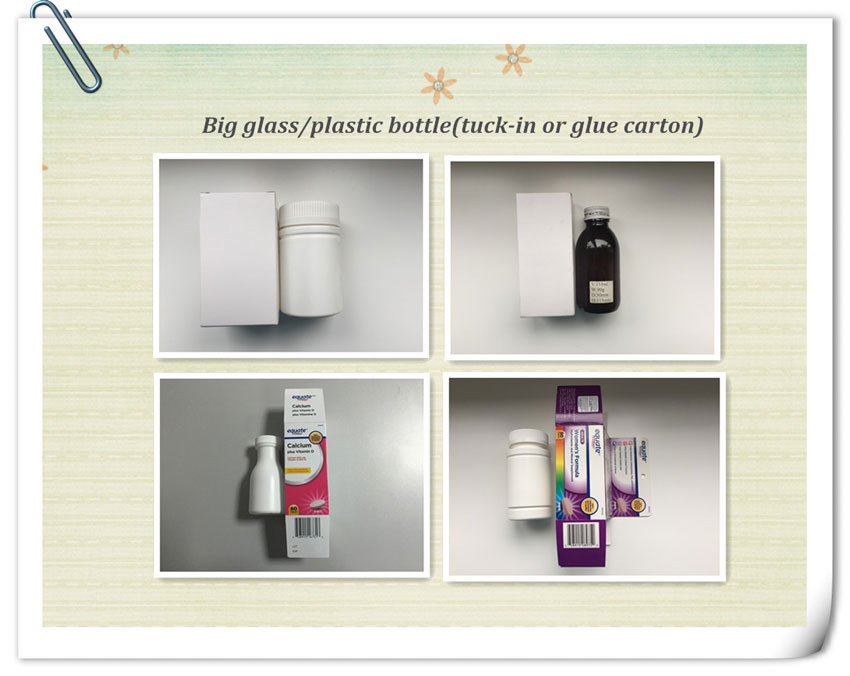

Bottle sample

Technical Data

Weight & Dimensions

Type	YL-130
Dimensions in mm	3220mm×1210mm×1770mm (L×W×H)
Weight in kg	1500

Output & Speed

Steady production speed

60-70cartons/min

Unfold Leaflet (optional)

Grammage	Between 60-70g/m2
Size range	150 ×130mm (L×W)
Fold range	(1-4 )fold
Notice: The leaflet can be folded by the machine

Carton and bottle

Grammage	Between( 250-350)g/m2
Item	Bottle size mm	Carton Size mm
50ml	98*diameter37.5mm	1154242
100ml	123*diameter45mm	1405050

Utilities

Standard power supply	380V – 50Hz three phase
Power consumption in KW	1.5KW
Air consumption	20M3/h
Compressed Air Pressure	0.6MPa
Noise	＜70 dB

Sensors

Product presence detection sensor
Leaflet presence detection sensor
Carton present detection sensor

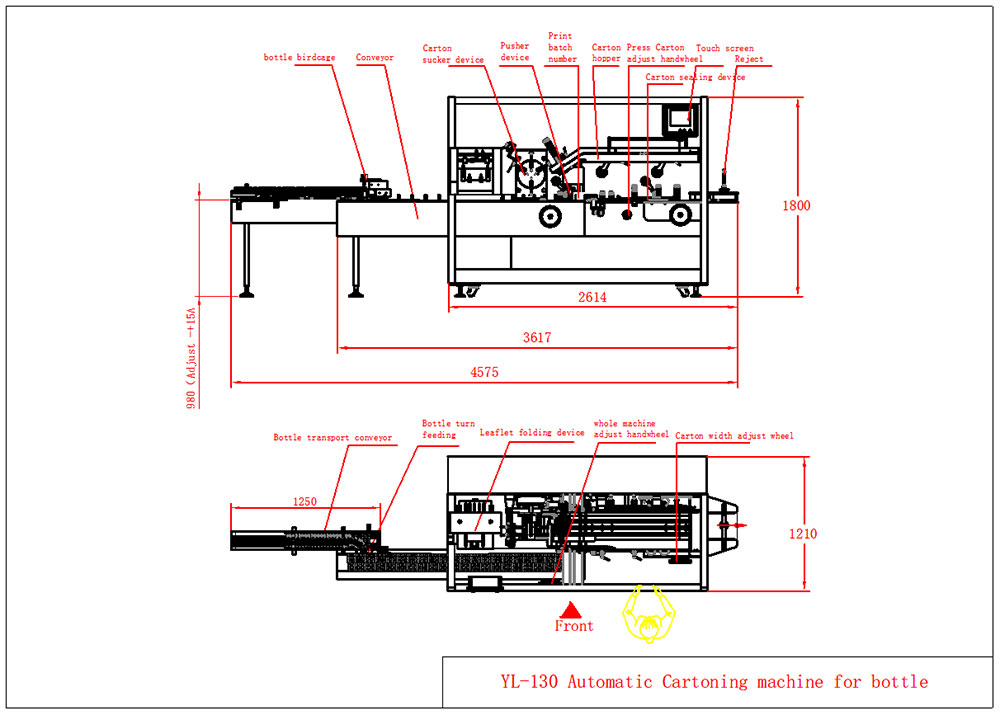

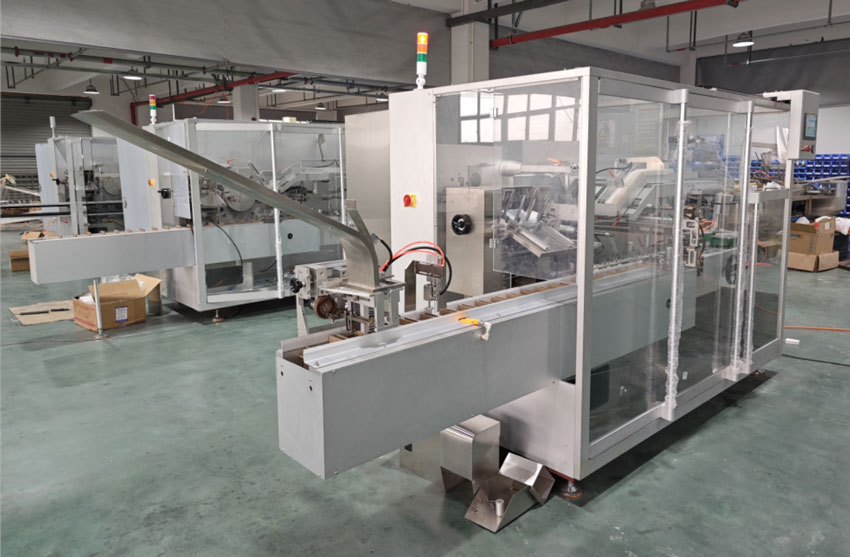

Machine drawing

Structure about every assembly unit

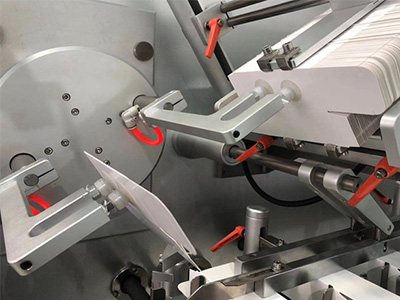

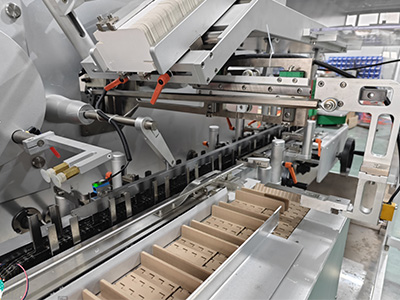

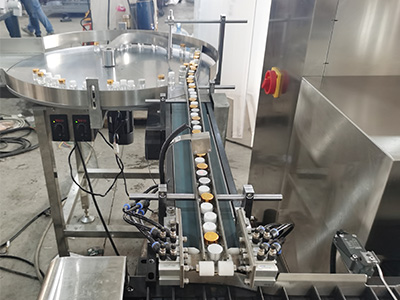

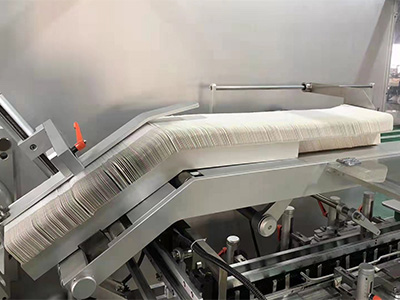

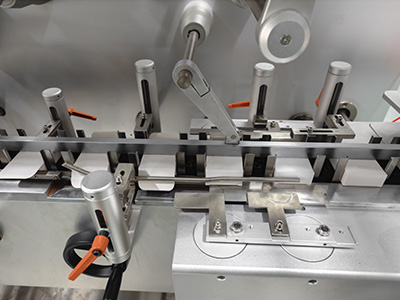

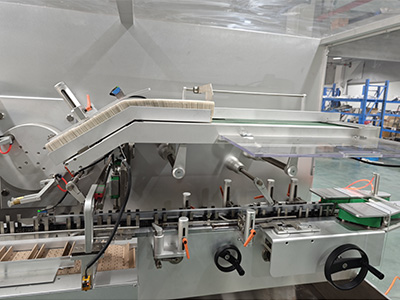

Bottle turntable	Carton magazine which can full of 400-500pcs cartons	Suck carton device

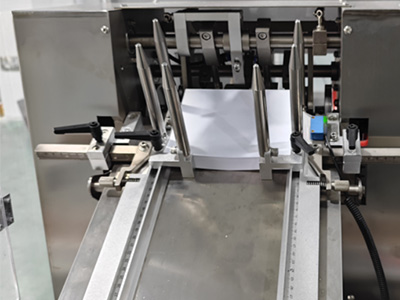

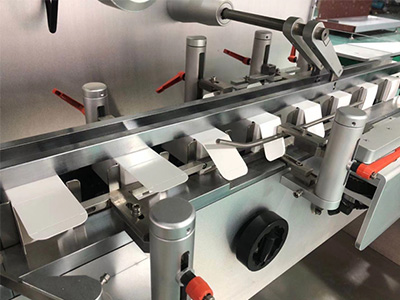

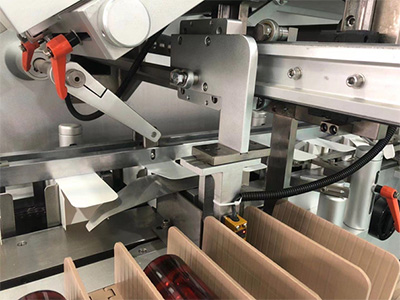

Suck carton device	Leaflet folding device	Pusher (which product into carton)

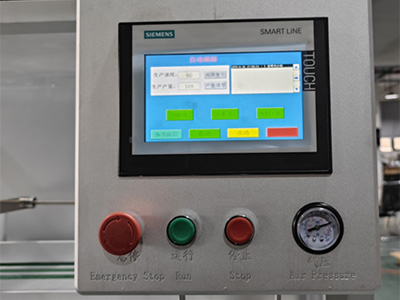

Bottle into carton	Touch screen	Carton sealing by tuck -in

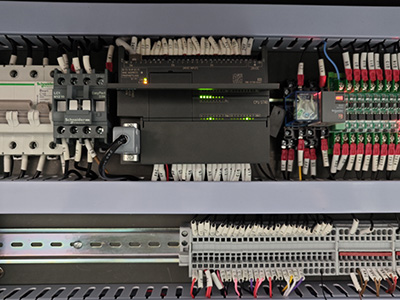

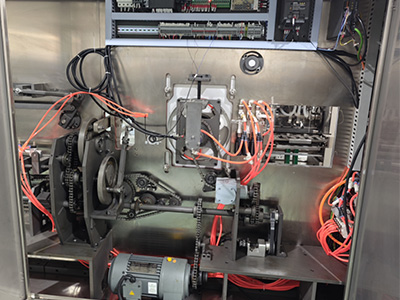

Carton sealing by tuck -in	PLC and electrical circuit	PLC and electrical circuit
